P144 Diffusion cut lens specification

Diffusion cut lens + 4-way LED layout for 360° illumination.
Brightness: 200 lumens *Value for one bulb.
Comes with a one-year warranty. For 12V vehicles only. Polarity free. Pack of 2.

Irradiation image

6000K pale blue light.
Model equipped with a linear IC. Detects heat when turned on and automatically controls current. Maintains maximum brightness for long periods of time.

Valve Size

T10 wedge type.
Same size as normal valve.

Use applications

It can be used anywhere that has a T10 shape, such as in the position, room, number plate, or luggage.

P145 Diffusion lens specifications

360° illumination with high-performance diffusion lens.
Brightness 150 lumens *Value for one bulb.
1 year warranty. For 12V vehicles only. Polarity free. Pack of 2

Irradiation image

6000K pale blue light.
It is characterized by the fact that it emits soft, diffused light overall by passing it through a white diffusion lens.

Valve Size

T10 wedge type.
Same size as normal valve.

Use applications

It can be used anywhere that has a T10 shape, such as in the position, room, number plate, or luggage.

P141 Ultra-small CSP LED adopted

360° illumination with full body clear illumination.
Brightness: 70 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. 2 pieces included.
*Case design will change from April 2024.

Irradiation image

6000K white light.
The color scheme is close to the genuine LED.

Valve Size

T10 wedge type.
Same size as normal valve.

Use applications

It can be used anywhere that has a T10 shape, such as in the position, room, number plate, or luggage.

P142 Low-floor mount design

By mounting the high-brightness 1SMD LED low to the floor, the light is diffused efficiently and widely within the fixture.
Brightness: 20 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. 2 pieces included.
*Case design will change from April 2024.

Irradiation image

6000K white light.

Valve Size

T10 wedge type.
Same size as normal valve.

Use applications

It can be used anywhere that has a T10 shape, such as in the position, room, number plate, or luggage.

P213 24V cut lens specification

High-brightness 4 LEDs + diamond cut lens efficiently diffuse the light inside the fixture. Standard model for 24V vehicle inspection compliant positions.
Brightness: 25 lumens *Value for one bulb.
For 24V vehicles only. Polarized. 2 pieces included.

Available in a set of 10.
Product number: RGH-P213B (10 pieces)

Irradiation image

6200K pure white light.

Valve Size

T10 wedge type.
Same size as normal valve.

Use applications

It can be used anywhere that has a T10 shape, such as a position.

P404 Ultra-small CSP LED adopted

CSPLED Series Cool White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 100 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.
*Case design will change from April 2024.

Irradiation image

7900K white light developed specifically for rooms.
A high color temperature setting that allows you to experience the whitest light when worn indoors.
*The photo shows an example of door courtesy installation.

Valve Size

T10 wedge type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used in room/luggage/vanity/door courtesy lamps.
*Please refer to the vehicle-specific application table for applicability.

P405 ultra-small CSP LED adopted

CSPLED Series Relax White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 100 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.

Irradiation image

Warm 3000K light developed specifically for rooms.
The bright incandescent color creates a calming atmosphere inside the car, which is a personal space.
*The photo shows an example of door courtesy installation.

Valve Size

T10 wedge type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used in room/luggage/vanity/door courtesy lamps.
*Please refer to the vehicle-specific application table for applicability.

P406 Ultra-small CSP LED adopted

CSPLED Series Cool White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 110 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.

Irradiation image

7900K white light developed specifically for rooms.
A high color temperature setting that allows you to experience the whitest light when worn indoors.
*The photo shows the 2nd and 3rd row room lamps of the 30 series Alphard.

Valve Size

T10 wedge type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used as a room/luggage/vanity lamp.
*Please refer to the vehicle-specific application table for applicability.

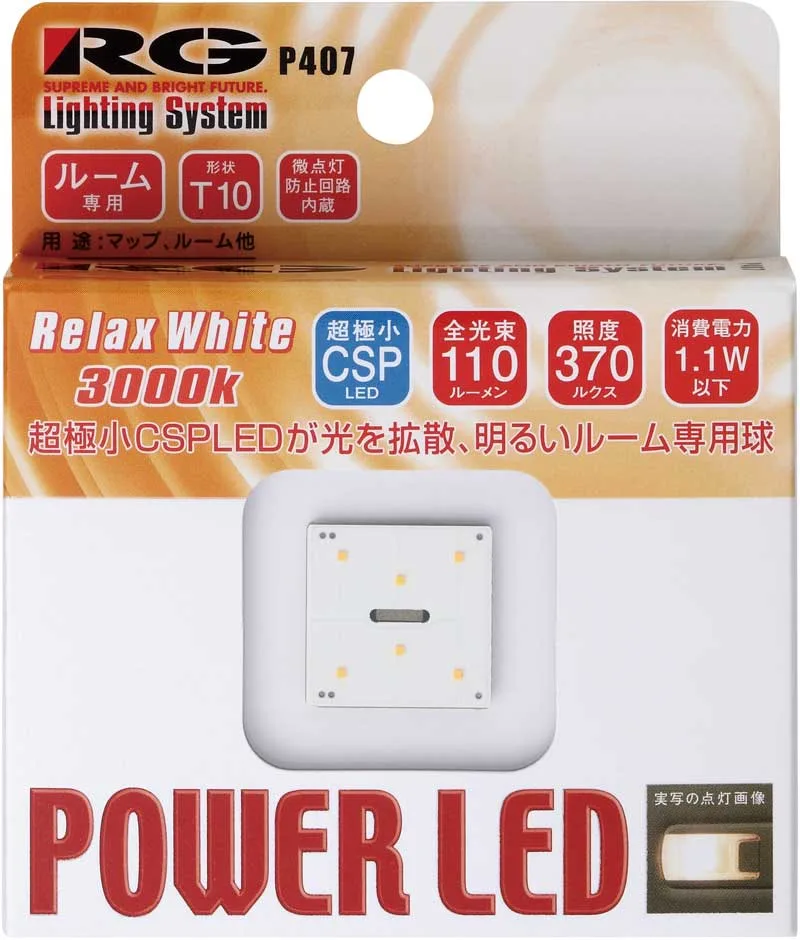

P407 Ultra-small CSP LED adopted

CSPLED Series Relax White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 110 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.

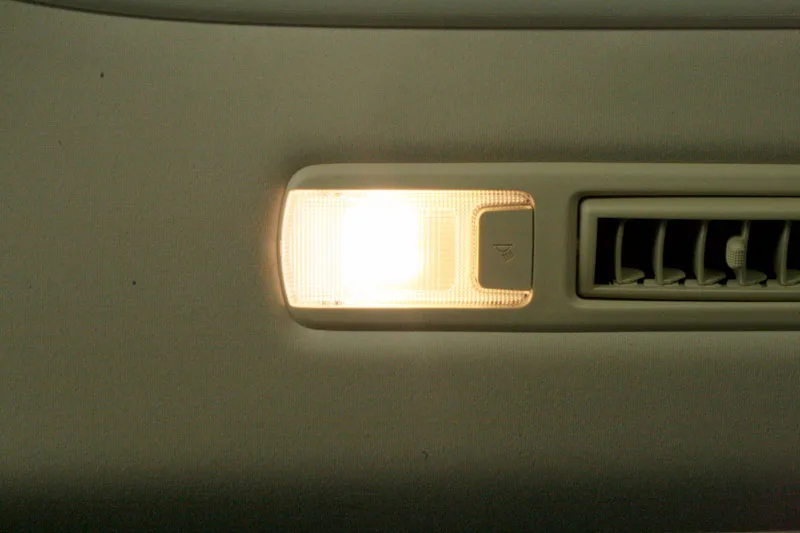

Irradiation image

Warm 3000K light developed specifically for rooms.
The bright incandescent color creates a calming atmosphere inside the car, which is a personal space.
*The photo shows the 2nd and 3rd row room lamps of the 30 series Alphard.

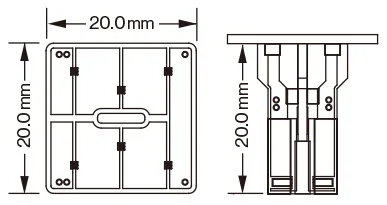

Valve Size

T10 wedge type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used as a room/luggage/vanity lamp.
*Please refer to the vehicle-specific application table for applicability.

P143 Diffusion lens specifications

180° illumination with high-performance diffusion lens.
Brightness: 120 lumens *Value for one bulb.
Comes with a one-year warranty. For 12V vehicles only. Polarity free. Includes a circuit to prevent low-lighting. Pack of 1.

Irradiation image

6000K white light.
It features a white diffusion lens that provides an overall soft, diffused illumination.

Valve Size

Festoon type for both T10x31 and T8x29.
Approximately the same size as a normal valve.

Use applications

It can be used anywhere with a T10x31 or T8x28 shape, such as on license plates/luggage.

P408 Ultra-small CSP LED adopted

CSPLED Series Cool White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 110 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.

Irradiation image

7900K white light developed specifically for rooms.
A high color temperature setting that allows you to experience the whitest light when worn indoors.

Valve Size

T10×31 festoon type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used as a room/luggage/vanity lamp.
*Please refer to the vehicle-specific application table for applicability.

P409 Ultra-small CSP LED adopted

CSPLED Series Relax White
The ultra-small CSP LED diffuses the light, and is specially designed for rooms so that the yellow part of the LED is not noticeable even when the light is turned off.
Brightness 110 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. Built-in circuit to prevent low-lighting. 1 piece.

Irradiation image

Warm 3000K light developed specifically for rooms.
The bright incandescent color creates a calming atmosphere inside the car, which is a personal space.

Valve Size

T10×31 festoon type.
A room-specific size that ensures the maximum light-emitting area depending on the area of use.

Use applications

It can be widely used as a room/luggage/vanity lamp.
*Please refer to the vehicle-specific application table for applicability.

P210 Diffusion lens specifications

With a brightness of over 10W (watts), it consumes less than 1/5 of the power.
Equipped with 4SMD high brightness LEDs, 180° illumination.
Brightness: 120 lumens *Value for one bulb.
For 24V vehicles only. Polarity free. 1 piece included.

Available in a set of 10.
Product number: RGH-P210B (10 pieces)

Irradiation image

5500K daylight color light.
We use a white (daylight color) that is not too blue and does not affect the lens color when the marker is attached.

Valve Size

G18/25 compatible pin type.
*BA15S socket
Approximately the same size as a normal valve.

Use applications

It can be used anywhere that has G18/S25 (BA15S socket) for numbers/markers, etc.

P211 Diffusion lens specifications

With a brightness of over 10W (watts), it consumes less than 1/5 of the power.
Equipped with 4SMD high brightness LEDs, 180° illumination.
Brightness: 120 lumens *Value for one bulb.
For 12V vehicles only. Polarity free. 1 piece included.

Available in a set of 10.
Product number: RGH-P211B (10 pieces)

Irradiation image

5500K daylight color light.
We use a white (daylight color) that is not too blue and does not affect the lens color when the marker is attached.

Valve Size

G18/25 compatible pin type.
*BA15S socket
Approximately the same size as a normal valve.

Use applications

It can be used anywhere that has G18/S25 (BA15S socket) for numbers/markers, etc.
